Pipe Guides

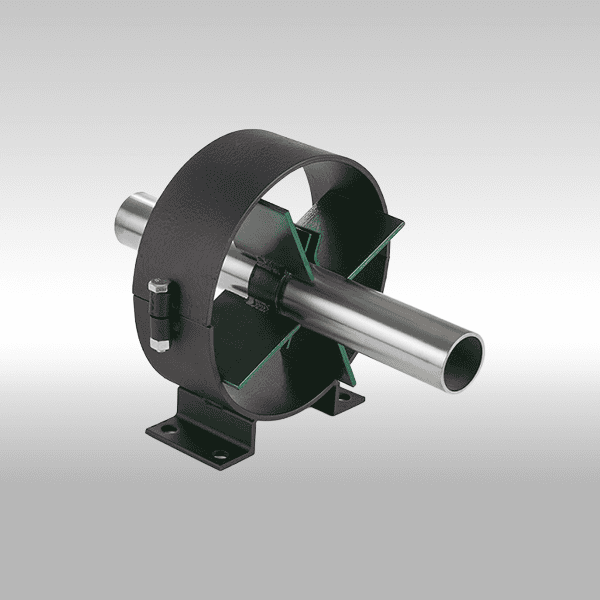

Keflex™ Pipe Guides are designed to maintain positive pipe alignment by restricting lateral movement while allowing axial expansion. Featuring a rugged carbon steel spider-housing design and protective coating, these guides direct motion into the expansion joint for smooth, trouble-free operation.
Used alongside expansion joints, loops, and compensators, Keflex pipe guides protect the pipe, mechanical equipment, and expansion devices from misalignment or vibration. Available in pre-insulated models and bolted split-housing configurations for easy assembly and fast field installation, they’re built to perform under the most demanding conditions.
Features & Benefits
– Ensures positive pipe alignment by restricting lateral movement while allowing axial expansion and contraction
– Protects piping, expansion joints, and mechanical equipment from misalignment and stress damage
– Heavy-duty carbon-steel construction with protective coating for corrosion resistance and durability
– Spider-housing design provides smooth movement and precise guidance along the pipe axis
– Bolted, split-housing construction allows quick field assembly and easy maintenance
– Available in insulated and uninsulated configurations to match system design and thermal requirements
– Standard axial movement up to 12 inches, custom sizes available upon request
– Compatible with Keflex™ expansion joints, loops, and compensators for complete motion-control systems
Application
– Durable and versatile for a wide range of applications
– Fast lead times and responsive engineering support
– Multiple configurations for carbon-steel and copper piping
– Easy to install, field-adjustable, and shipped unassembled for convenience
– Insulated or uninsulated options for temperature-controlled piping
– Proven technology backed by nearly a century of reliable service
– Engineering assistance available to match guides precisely to pipe movement and insulation thickness
