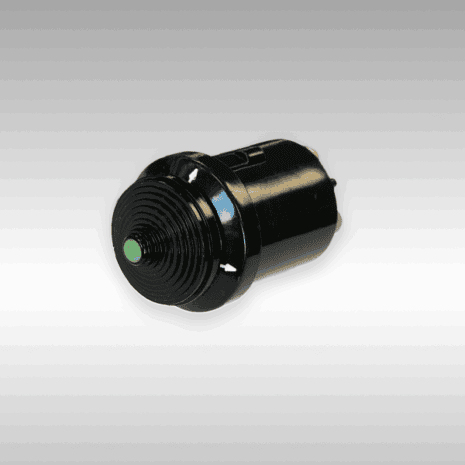

MS 4 Way Switch

The MS-qualified 4-Way switch combines a high current rating with positive tactile feedback. Designed for rugged environments, it is moisture-resistant and dust-tight, with multiple power ratings and engraved bezels to meet customer requirements. Military and commercial grades are available.

Microfiber oil filter canister for industrial machinery.

Specs

Ratings

5A @ 28VDC Inductive
20A @ 28VDC Inductive
5A @ 115VAC Inductive

Circuits

NA

Electrical Life

250,000 Cycles

Mechanical Life

NA

Operating Force

Between 21 – 36oz

Release Force

NA

Operating Temp

-55C to 85C

Mounting

Panel or Handle

Terminal

Solder Terminals or Wire Leads

Options & Other Mechanical
Specs

NA

Agency Approvals

MIL S-9419
MS27708-4

Envelope Dimensions

Terminal hole connector schematic drawing for industrial electrical components.

Special Features

  • Qualified MS27708-4
  • High Current Rating
  • Positive Tactile Feedback
  • Multiple Power Ratings Available
  • Engraved Bezels Available
  • Moisture Resistant and Dust Tight Seal
Talk to Engineering

Need a non-standard detent, throw, or actuation force?

If you’re building mission-critical controls—from aircraft and armored vehicles to surgical devices and automated factories—we’ll tailor your electromechanical switches (toggle, rocker, slide, trigger, thumbwheel, multi-way) with the right contact ratings, sealing, illumination, mounting, and terminations.

Talk to Engineering

Frequently Asked Questions

Yes. Select series use Guardian’s patented Triplex circuitry—three redundant switching circuits—with simplex/duplex options for critical or fail-safe applications.

Depends on series: up to 1.8 million cycles (thumbwheel), 1,000,000 cycles (pushbutton Triplex), and 50,000 cycles on several trigger/rocker variants.

Yes. Models include moisture-proof/dust-tight rockers and moisture-resistant/dust-tight MS-qualified 4-way switches for rugged environments.

Multiple power ratings across families; circuit options include SPST/SPDT (slide) and SPDT/DPDT (rocker). High-current options include trigger switches up to 10 A.

Yes. Several series support grip or panel integration, including multi-function display use (e.g., linear transducer; 5-way mini).
