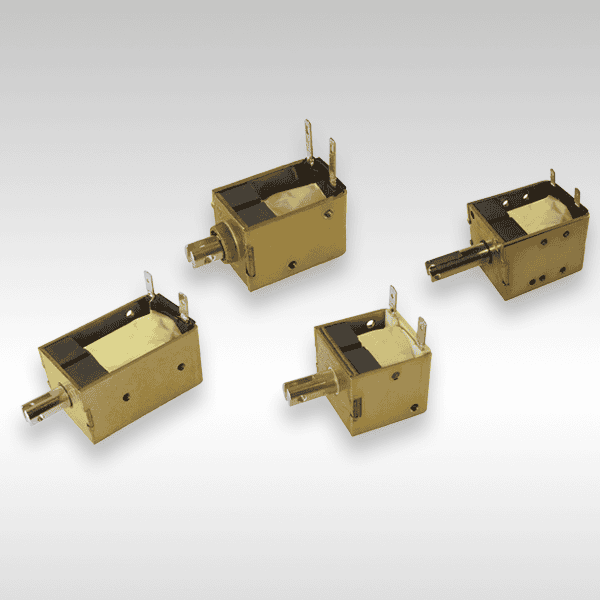

Latching Solenoids (DC) — No-Power Hold, Reverse-Polarity Release
Guardian’s DC latching solenoids provide bistable actuation that holds position with zero continuous power, reducing heat and energy draw in battery-powered or always-on equipment. The plunger seats to the pole face at a specified holding force and stays latched through power interruptions; reverse the polarity to release. Standard units are UL Recognized and RoHS-compliant (2011/65/EU), with rapid customization for voltages, plungers, mounting, terminations, and value-added packages. 100% Made in the USA.
| Image | Part # | Length (in/mm) | Width (in/mm) | Height (in/mm) | Max Stroke (in/mm) | Cont. Duty (oz/N) | Magnetic Holding Force Oz | Datasheet | Request quote | hf:tax:pa_solenoid-length | hf:tax:pa_solenoid-width | hf:tax:pa_solenoid-height | hf:tax:pa_solenoid-max-stroke | hf:tax:pa_solenoid-cont-duty | hf:tax:pa_solenoid-mag-hold-force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 4L | 1.98 / 50.3 | 1.57 / 39.9 | 1.62 / 41.1 | 1 / 25.4 | 13 / 3.6 | 160 / 44.5 |
| | 1-98-50-3 | 1-57-39-9 | 1-62-41-1 | 1-25-4 | 13-3-6 | 160-44-5 |
| 11L | 1.84 / 46.7 | 1.19 / 30.2 | 1.19 / 30.2 | 0.75 / 19.1 | 6 / 1.7 | 96 / 26.7 |
| | 1-84-46-7 | 1-19-30-2 | 1-19-30-2 | 0-75-19-1 | 6-1-7 | 96-26-7 |
| 22L | 1.15 / 29.2 | 0.95 / 24.1 | 0.75 / 19.1 | 0.375 / 9.5 | 7 / 1.9 | 48 / 13.3 |
| | 1-15-29-2 | 0-95-24-1 | 0-75-19-1 | 0-375-9-5 | 7-1-9 | 48-13-3 |
| 28L | 1.13 / 28.7 | 1.08 / 27.4 | 1.19 / 30.2 | 0.5 / 12.7 | 4 / 1.1 | 48 / 13.3 |
| | 1-13-28-7 | 1-08-27-4 | 1-19-30-2 | 0-5-12-7 | 4-1-1 | 48-13-3 |
Need a non‑standard stroke, force curve or package?
