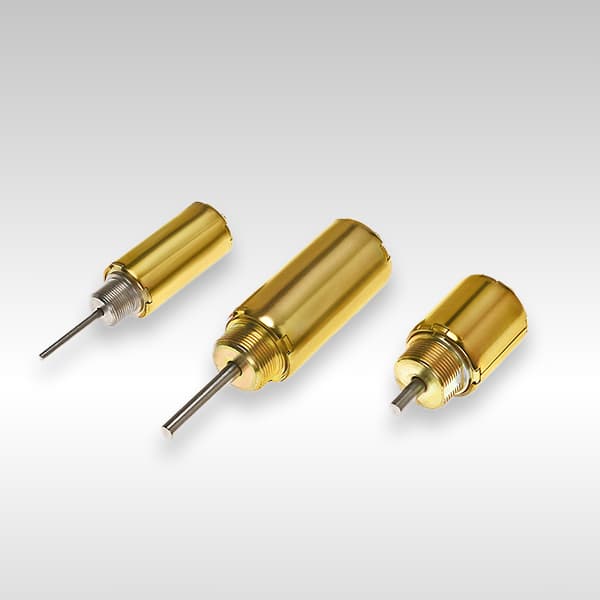

Tubular Solenoids
Guardian’s tubular DC solenoids pack high force into compact tubes for valves, locks, latches and release mechanisms across aerospace, defense and heavy‑industrial systems. Standard diameters from 0.44 to 1.5 in (11–38 mm) deliver up to 40 oz [11 N] at strokes of 0.25–1.0 in, with push or pull action, continuous‑ or intermittent‑duty windings, and custom voltages from 6 to 48 VDC. Options include return springs, extended‑life bushings, hermetic or epoxy sealing, tailored lead‑wire terminations and value‑added subassemblies— all UL‑Recognized, RoHS‑compliant and 100 % made in our AS9100/ITAR‑certified U.S. facility.
Description
Guardian’s tubular DC solenoids deliver high force in tight envelopes—ideal for valves, locks, latches and release mechanisms in aerospace, defense and rugged industrial systems. Standard diameters from 0.44 to 1.5 in (11–38 mm) generate up to 40 oz [11 N] at strokes of 0.25–1.00 in, with continuous‑ and intermittent‑duty windings designed for battery, 12/24 VDC or custom voltages. Each unit ships ready to mount with bracket, hex nut and lock washer; plungers are machined to your interface for drop‑in integration.
Engineering options
-
Custom coil resistance / voltage
-
Push or pull configuration
-
Extended‑life bushings & dry‑film lubes
-
Return springs (external or internal)
- PEEK, epoxy or hermetic sealing for high‑temp / fluid exposure -
Harness, lead‑wire or connector terminations
-
Value‑added subassemblies (clevis, cleat, sensor)
All catalog models are UL‑Recognized, RoHS compliant and 100 % Made in the USA in our AS9100- and ITAR‑certified facility. Upload your stroke/force requirements and receive a tailored quote within 24 hours.
